Square Manhole Cover

Home Square Manhole Cover

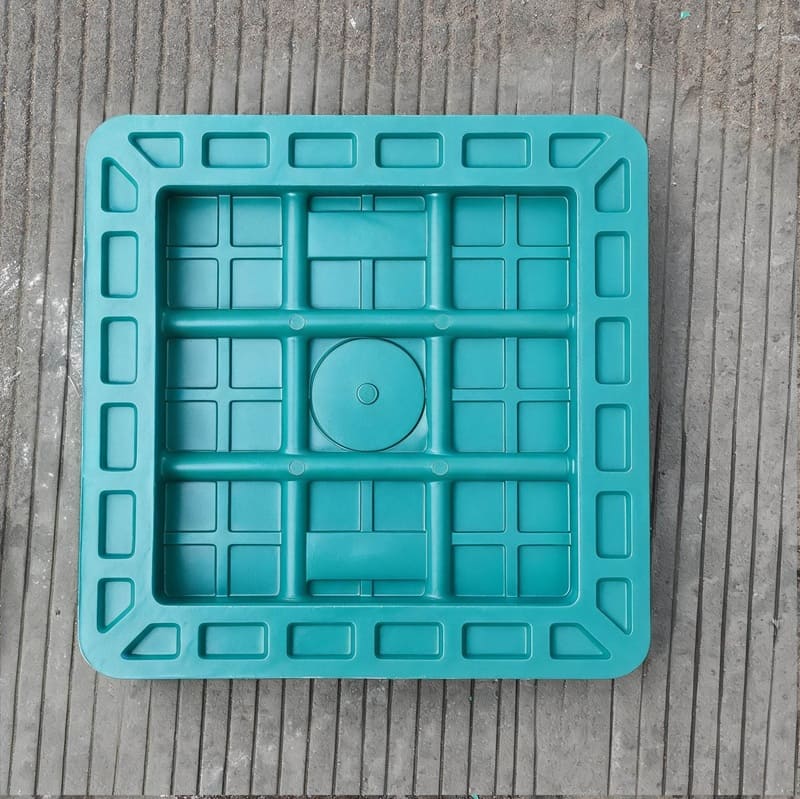

300*300mm EN124 GRP Composite Manhole cover and Frame in Square Shape

Composite grainage cover
manhole cover
GRP FRP manhole cover
SMC BMC manhole cover
Fiberglass manhole cover

300*300mm EN124 GRP Composite Manhole cover and Frame in Square Shape

Loading Capacity:A15/B125/C250/D400
Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic
Material:Fiberglass,Resin etc
Color:Customization Available
Clear Open:270.6*270.6mm
Cover Dimension:300mm*300mm*28.5mm
Frame Dimension:359mm*359mm*38.3mm
Hinged:No
Customization Logo:Available
Certifications:ISO9001,ISO14001,ISO45001,CE
  • Product Details

If you’re looking for China-made manhole covers and frames, you’ve come to the right place. No matter what your application is, we can help. Here at FEILONG, we strive to provide our clients with the perfect manhole cover and frame that will suit your needs. Our engineers work directly with you to design custom made to order manhole covers and frames or any of our other products. We receive your information, design your cover based on your needs, send an approval drawing and a formal quote prior to completing the sale.

composite manhole cover

Dimension Parameter Clear Open(mm) Cover Size(mm) Frame Size(mm)
270.6*270.6 300*300*28.5 359*359*38.3







Features & Benefits:



Weight Loading:Our manhole cover loading capacities are up to 1.5 tonne,12.5 tonne,and 25 tonne,40 tonne,and even 60 tonne, making them suitable for a wide range of applications from pedestrian and cycle-ways to airport,docks areas.



Lightweight:the weight of each cover is much lower than standard ductile iron or steel equivalent. This means they can be lifted by one person, which conforms to new industry working standards.



Multi-Uses:The products are compatible with all existing chambers so they can be used for both replacement projects and new builds.



Ease of Transport:more covers can be transported per vehicle at reduced cost.



Increased Safety:cover usability allows for a safer working environment.

GRP manhole cover

Advantages of Composite Manhole Covers



LIGHTWEIGHT

Composite covers are popular due to their lightweight. This makes it helpful and makes it more effiworkly to finish work at one work site and move to the next. A worker or two can easy to carry the composite cover and frame to a manhole, and effortlessly install them or open the cover with a tool.  No need for mechanical lifting because they don’t have to strain to move them. Also, it creates a safer environment and reduces the risk of back injury.



CORROSION-FREE

When iron covers come into contact with water, it keens to corrosion. An over-rusted manhole cover may break when heavy wheel trucks drive over it. This generates more fall in hazzard and public health issues. However, This is not a problem with composite covers. They can withstand most chemical aggressive liquids or gases.



INEXPENSIVE

Because composite material is so durable, it saves on maintenance. It does not have to be replaced as often. And when you consider the shipping and fuel costs that are incurred when these items are delivered, this saves an incredible amount of money.



LASTING

Unlike the traditional cast iron manholes, our composite manholes can last up to two decades.



THEFT PREVENTION

One of the biggest issues of metal covers is theft. Jobless people steal them in order to sell them to the scrap market. The uncovered holes are hazardous to the public. However,composite covers have zero scrap value.





COMMON APPLICATIONS FOR FIBERGLASS

Fiberglass can be molded into various complex shapes, making it a popular material for several industries and applications, including:

*Petro chemical

*Water and wastewater

*Gas

*Electric

*Communications

*Municipal use etc





Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Composite grainage cover
300*300mm EN124 GRP Composite Manhole cover and Frame in Square Shape
Loading Capacity:A15/B125/C250/D400 Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:270.6*270.6mm Cover Dimension:300mm*300mm*28.5mm Frame Dimension:359mm*359mm*38.3mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
SMC BMC manhole cover
400*400*40mm EN124 GRP FRP SMC BMC Composite Manhole cover and Frame in Square Shape
Loading Capacity:A15/B125/C250/D400 Application:Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:365*365mm Cover Dimension:400mm*400mm*37.2mm Frame Dimension:470mm*470mm*48mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
GRP FRP manhole cover
500*500*40 EN124 GRP FRP SMC BMC Composite Manhole cover and Frame in Square Shape from Chinese Supplier
Loading Capacity:A15/B125/C250/D400 Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:461*461mm Cover Dimension:500mm*500mm*37mm Frame Dimension:564mm*564mm*48.5mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
FRP manhole cover and frame
600*600*40mm EN124 GRP FRP SMC BMC Composite Manhole cover and Frame in Square Shape
Loading Capacity:A15/B125/C250/D400 Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:568*568mm Cover Dimension:600mm*600mm*39mm Frame Dimension:666.5mm*666.5mm*51.5mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
composite manhole cover and frame
500*500*50 EN124 GRP FRP SMC BMC Composite Manhole cover and Frame in Square Shape Chinese Manufacturer Direct Sale
Loading Capacity:A15/B125/C250/D400 Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:448.4*448.4mm Cover Dimension:500mm*500mm*50mm Frame Dimension:600mm*600mm*71.5mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
infrastructure facilities
φ300*30mm EN124 GRP Composite Manhole cover and Frame in Round Shape Supplier Direct Sale
Loading Capacity:A15/B125/C250/D400 Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:φ269.7mm Cover Dimension:φ300mm*30mm Frame Dimension:φ363mm*45mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
SMC BMC manhole cover
φ500*50 EN124 GRP Composite Manhole cover and Frame in Round Shape Manufacturer Direct Sale
Loading Capacity:A15/B125/C250/D400 Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:φ459.4mm Cover Dimension:φ500mm*47mm Frame Dimension:φ567mm*60mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
Sewage system
φ600*60mm EN124 GRP Composite Manhole cover and Frame in Round Shape Manufacturer Direct Sale
Loading Capacity:A15/B125/C250/D400 Application:Application:Pedestrians and Cyclists/Driveways and Car Parks/Slow Moving Heavy Traffic/Slow Moving Heavy Traffic Material:Fiberglass,Resin etc Color:Customization Available Clear Open:φ556mm Cover Dimension:φ600mm*58mm Frame Dimension:φ680mm*78mm Hinged:No Customization Logo:Available Certifications:ISO9001,ISO14001,ISO45001,CE
  • 3 production bases and 4 series products
  • 9 standardized digital workshops and 7 digital automatic production lines.
  • More than 200 sets of hydraulic equipment and More than 600 employees.
  • 200.000㎡ factory area.
  • Passed the CE,ISO9001, ISO14001 and ISO45001 certificates.
