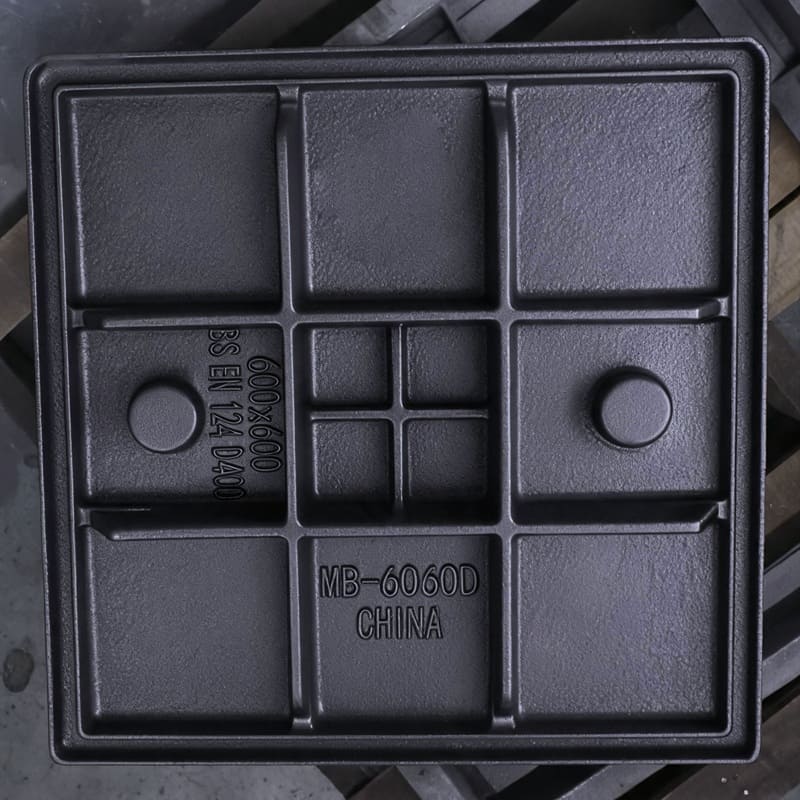

600*600mm(23.6")D400 Medium Duty Square Ductile Iron Manhole Covers

Application: Carriageways of roads
Material: Ductile Iron
Paint and Color: Bitumen Paint
Clear Open/Clean Aperture: 600 mm x 600 mm
External Dimensions: 735 mm x 735 mm x 80 mm
Lock System:None
Customization:Support
Seal:Double Sealed
Certifications:ISO9001,ISO14001,ISO45001,CE
  • Product Details

If you’re looking for China-made manhole covers and frames, you’ve come to the right place. No matter what your application is, we can help. Here at FEILONG, we strive to provide our clients with the perfect manhole cover and frame that will suit your needs. Our engineers work directly with you to design custom made to order manhole covers and frames or any of our other products. We receive your information, design your cover based on your needs, send an approval drawing and a formal quote prior to completing the sale.

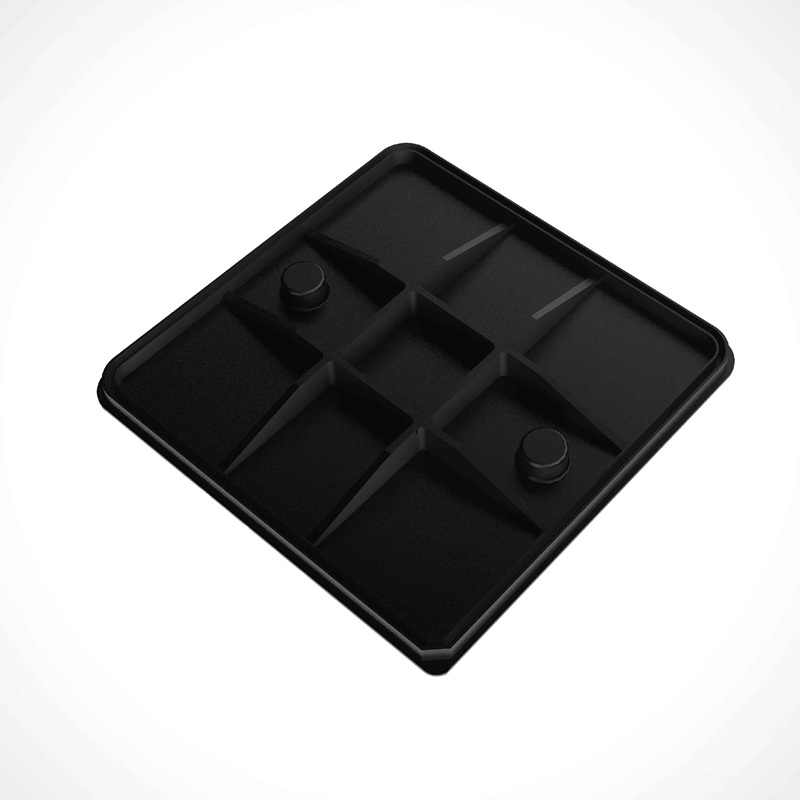

Product structure size

(mm)

Cover Clear Open L*W Weight of Cover(KG) Loading Class
600X600 49 D400

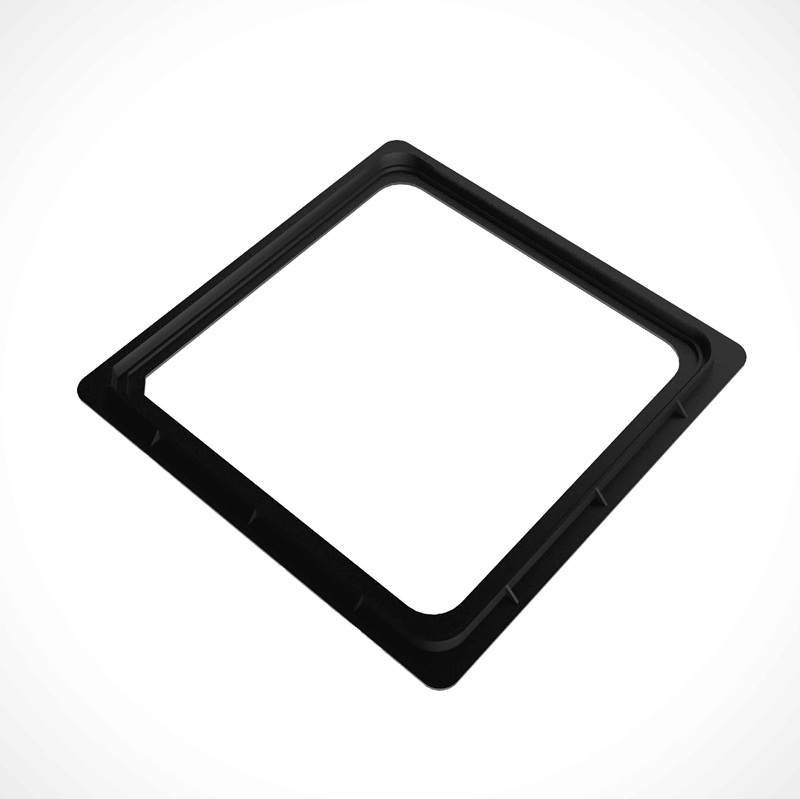

Manhole Frame L*W Weight of Frame(KG)

Frame Depth

735X735 23 80







Advantages of Ductile Cast Iron



-High Strength and Durability

Compared to grey cast iron, ductile iron has higher tensile strength, yield strength, and elongation, making it suitable for heavy-duty applications requiring stress resistance.



-Good Machinability

Ductile cast iron is more accessible to machines than steel or aluminium due to its lower hardness and better lubrication properties. This can save time and cost in the production process.



-Good Casting Properties

Ductile iron has excellent fluidity, filling complex moulds with intricate details and thin sections. It can also be cast in larger sizes without porosity or cracking.



-Corrosion Resistance

Due to its high carbon content and protective graphite layer, ductile iron is resistant to corrosion from many chemicals, water, and atmospheric conditions. It is often used in marine and offshore applications.





The applications of ductile iron manhole covers include but are not limited to municipal construction, water project like sewerage, water supply, footway,  rainwater, gas, heat, fire, telecommunication, carriageway, etc.



*Delivering quality products to our loyal customers.

*Providing strong after sales services.

*Respecting our valued clients.

*Investing in people for the future of our companies.

*Meeting challenges of fast growing economies.

*Building trust in local and export markets.
