650*650(25.6''*25.6'') D400 Medium Duty Composite Manhole cover and Frame in Square Applied to Gas Station

GRP FRP manhole cover
Composite manhole cover
Fiberglass manhole cover
SMC manhole cover
Gas station manhole cover

650*650(25.6''*25.6'') D400 Medium Duty Composite Manhole cover and Frame in Square Applied to Gas Station

Loading Capacity:D400
Application:Designed for petrol stations and other high-traffic locations
Material:Fiberglass,Resin etc
Color:Customization Available
Clear Open:600*600mm
Cover Dimension:650mm*650mm
Frame Dimension:750mm* 750mm*100mm
Customization Logo:Available
Certifications:ISO9001,ISO14001,ISO45001,CE
  • Product Details

Petrol Stations (Gas Station) provide a range of lightweight access covers for use over petroleum storage tanks. The covers are suitable for installation within Heavy Goods Vehicles  trafficed areas such as the tanker delivery area, however they can be installed wherever the tanks are within the station. Their key features include but not limited to:

· Zero scrap value to deter  theft.

· Suitable for the harshest environments

· Non corroding

· Non conductive

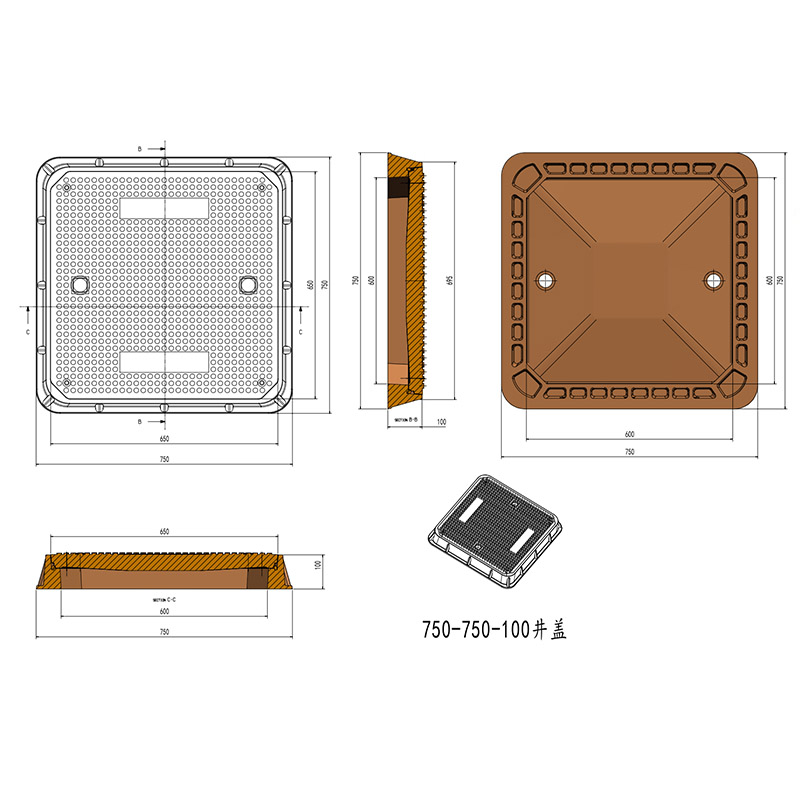

Drawing

Dimension Parameter Clear Open(mm) Cover Size(mm) Frame Size(mm)
600*600 650*650 750*750*100







manhole cover

Features & Benefits:



Weight Loading:Our manhole cover loading capacities are up to 1.5 tonne,12.5 tonne,and 25tonne,40 tonne,and even 60 tonne, making them suitable for a wide range of applications from pedestrian and cycle-ways to airport,docks areas.



Lightweight:the weight of each cover is much lower than standard ductile iron or steel equivalent. This means they can be lifted by one person, which conforms to new industry working standards.



Multi-Uses:The products are compatible with all existing chambers so they can be used for both replacement projects and new builds.



Ease of Transport:more covers can be transported per vehicle at reduced cost.



Increased Safety:cover usability allows for a safer working environment.









Advantages of Composite Manhole Covers



LIGHTWEIGHT

Composite covers are popular due to their lightweight. This makes it helpful and makes it more effiworkly to finish work at one work site and move to the next. A worker or two can easy to carry the composite cover and frame to a manhole, and effortlessly install them or open the cover with a tool.  No need for mechanical lifting because they don’t have to strain to move them. Also, it creates a safer environment and reduces the risk of back injury.



CORROSION-FREE

When iron covers come into contact with water, it keens to corrosion. An over-rusted manhole cover may break when heavy wheel trucks drive over it. This generates more fall in hazzard and public health issues. However, This is not a problem with composite covers. They can withstand most chemical aggressive liquids or gases.



INEXPENSIVE

Because composite material is so durable, it saves on maintenance. It does not have to be replaced as often. And when you consider the shipping and fuel costs that are incurred when these items are delivered, this saves an incredible amount of money.



LASTING

Unlike the traditional cast iron manholes, our composite manholes can last up to two decades.



THEFT PREVENTION

One of the biggest issues of metal covers is theft. Jobless people steal them in order to sell them to the scrap market. The uncovered holes are hazardous to the public. However,composite covers have zero scrap value.



loading



loading

Application







  • Gas station
